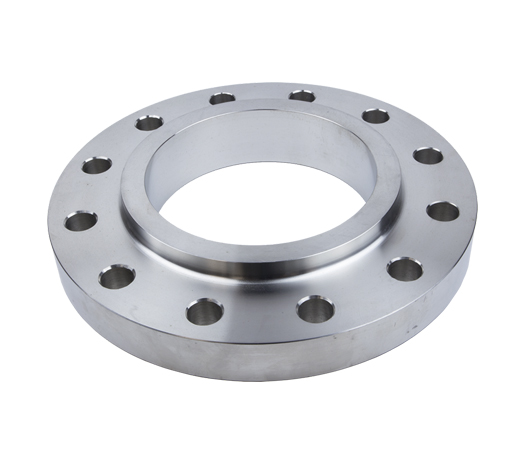

Slip-On Flanges are slid over the pipe and then fillet welded at both the inner and outer edges. They are easier to align and install compared to weld neck flanges.

Key Features

Cost-effective and easy to install
Suitable for low- to moderate-pressure applications
Requires double welding

Applications

Used in cooling water systems, low-pressure process piping, and firefighting lines.
Get a Quote

Dimension Slip On Flange (ASME B16.5)

Class 150 300 600 900 1500 2500
Diameter - A 30 38 38 38 38 ...
Diameter - D 90 95 95 120 120 ...
Thickness - B 9.6 12.7 14.3 22.3 22.3 ...
11.2 14.3 20.7 28.7 28.7 ...
Diameter - G 35.1 35.1 35.1 35.1 35.1 ...
Diameter - K 60.3 66.7 66.7 82.6 82.6 ...
Height - H 14 21 22 32 32 ...
15.6 22.6 28.4 38.4 38.4 ...
NO. L 4 4 4 4 4 ...
Diameter - L 15.9 15.9 15.9 22.2 22.2 ...
Stud Bolts Diameter x Length
Diameter (in) 1/2 1/2 1/2 3/4 3/4 ...
Length (mm) 55 65 75 110 110 ...
